Featuring  Axle  With Easy Lube Hubs
The only Tow Dolly manufactured with a factory built axle assembly!

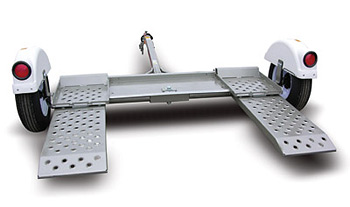

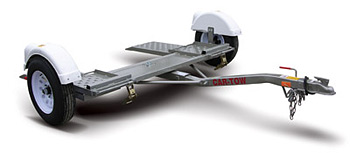

Car-Tow Standard Features
  • Axle with Easy Lube Hubs allowing for easy repacking of wheel bearings
  • Sealed tail lights mounted in rubber for long life
  • Sure-Grip ramps with beavertail for easy loading and lower angle on ramps
  • Factory molded, plug together wiring harness is grommeted and loomed to eliminate shorts
  • Wheel pan swivels on polyethylene pads for smooth operation
  • Dual safety chains with safety closure keep chains securely attached
  • Vinyl coated handle aids in hook-up
  • Phosphate wash, primer and two coats of enamel paint provide enhanced rust protection and high gloss finish
  • 3500 pound ratchets and adjustable straps included with each dolly
  • Full coverage fenders are molded high tech automotive polymers built to offer the best protection for towed vehicles



    GRAND PRIX TRAILER SALES

    Call 360-668-3114

    We are a Licensed and Bonded Washington State Dealer

Beavertail Ramps (STD)


Adjustable Straps (STD)


Fenders with Molded High
Tech Automotive Polymers (STD)
Optional Features
Towed Vehicle Secure Chains (Optional)
Spare Tire and Mount Kit
(Optional)
Bolt-On Winch Kit
(Optional)
Electric & Surge Drum Brakes (Optional)
Specifications


MODEL
CD80SA
HDCD80SA
Towed Vehicle Tread Width (min-max)*
44" - 80"
44" - 80"
Maximum Overall Width at Front
Doors for Vehicle in Tow
78"
78"
Overall Width
102"
102"
Overall Length
127"
127"
Height at Fender
28.5"
28.5"
Ground Clearance
7.5"
7.5"
Empty Weight
478 lbs.
534 lbs.
Gross Vehicle Weight Rating (GVWR)
2,800 lbs.
3,500 lbs.
Tire Size (Trailer Service)
ST205/75D 14" 6 Ply Rated
Coupler Size
2"
2"
Coupler Class
SAE 2
SAE 3
Specifications are subject to change without notice

* Tread width is the distance between the center points of the left tire tread and right tire tread as they come in contact with the road
